Description
Performance Range: 1,500-2,000 CFM
UMA 450 Standard Unit Includes:
- Standard salt spray finish
- 8 oz. woven polyester envelop filter bag (444 ft2 total filter media)
- Flat roof
- 3 cubic foot bin with sealer gear
- 12″ diameter inlet
- 7.5 HP K10 Fan 208/230/460/575/60/3 with TEFC motor
- Standard shaker drive assembly for intermittent duty
- 1/3 HP 208/230/460/60/3 TEFC shaker motor
- NEMA 12 controller
- Sound dampening fan chamber
Options:
- With a 10 HP fan performance up to 2,500 CFM
- With a 15 HP fan performance up to 5,000 CFM
- Acoustic diffuser
- Explosion protection options
- Various filters
- Weather bend roof for outdoor install
- Leg extensions
- Drilled flanges
- Explosion proof motors (fan and shaker)
- Sprinkler tap
- Secondary afterfilter
- Magnehelic gauge

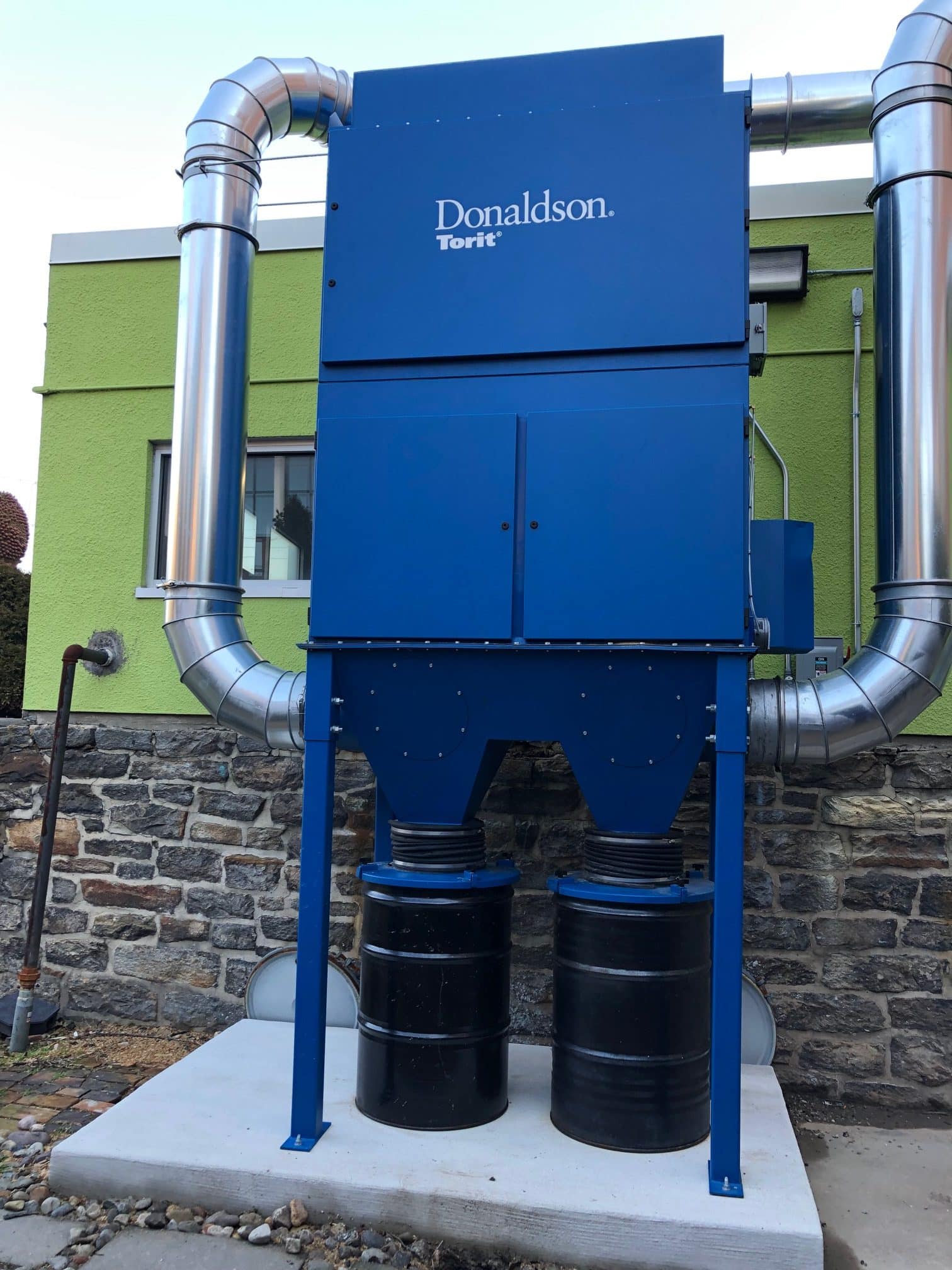

The unit shown is a application specific UMA 450.
