Source Capture Hoods

Source Capture Hood

Source capture of pollutants using localized exhaust hoods is an economical and cost-effective means to control plant air quality. Nuisance dust, fumes, mist, or smoke can be effectively captured and removed at the source with properly designed source capture hoods. Capturing the dirty air at the source minimizes the amount of air exhausted from the space which reduces the amount of make-up air required back into the space. Carefully designed hoods are available as standard “off-the-shelf” designs, or they can be custom designed to maximize capture of particulate and fume. In most cases, where we have not seen or applied a hood to a similar application, the starting point is the “Industrial Ventilation – A Manual of Recommended Practice for Design” manual.

Quick Links

Ventilation Equipment Integration Advantages of Custom Exhaust Hoods Disadvantages of Fixed Hoods Applications for Hoods Typical Exhaust Hood Designs

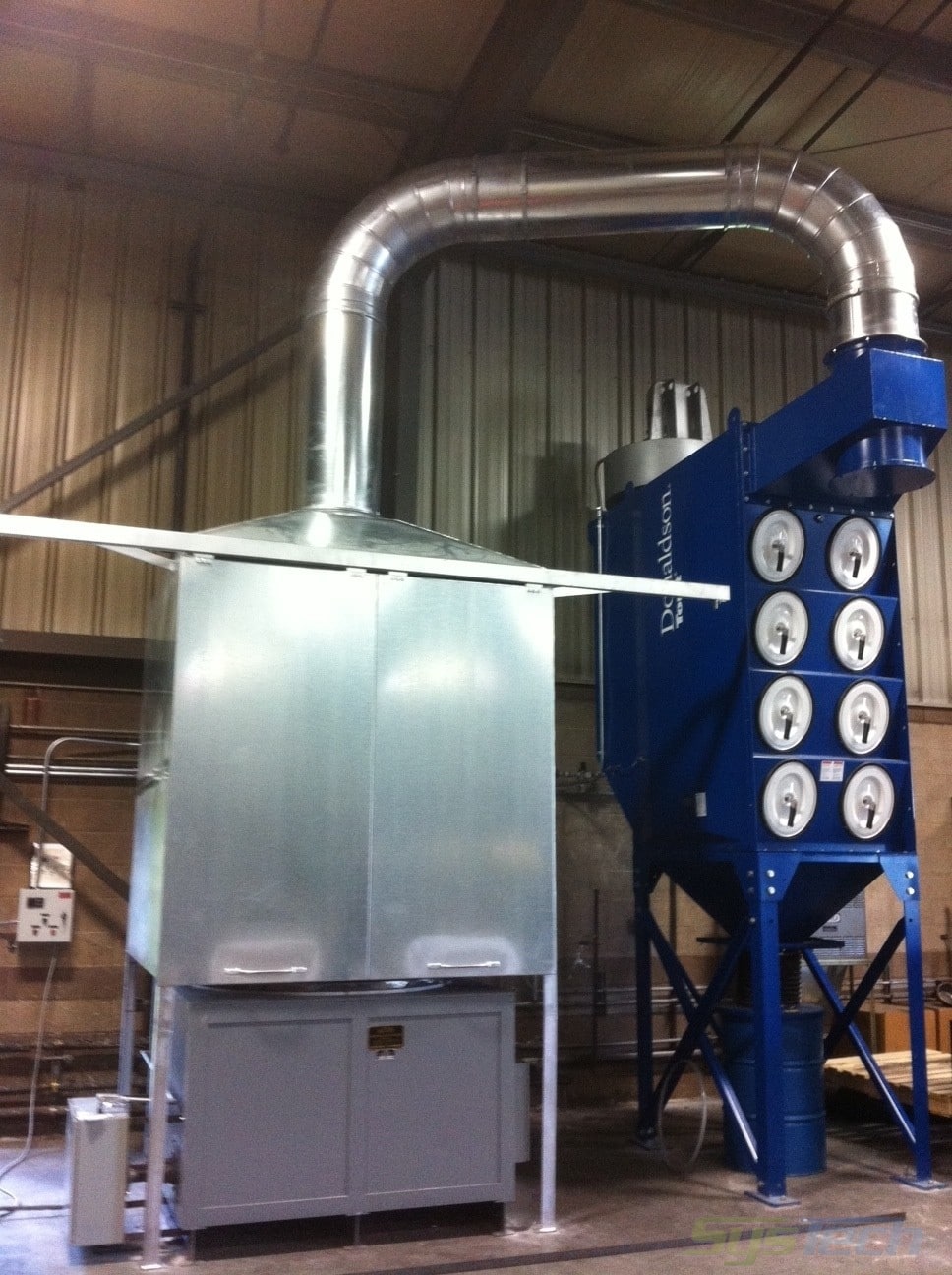

Exhaust Hood With Sliding Access Doors

Exhaust Hood With Sliding Access Doors
T
Exhaust Hood With Sliding Access Doors

Exhaust Hood With Sliding Access Doors

Exhaust Hood With Sliding Access Doors

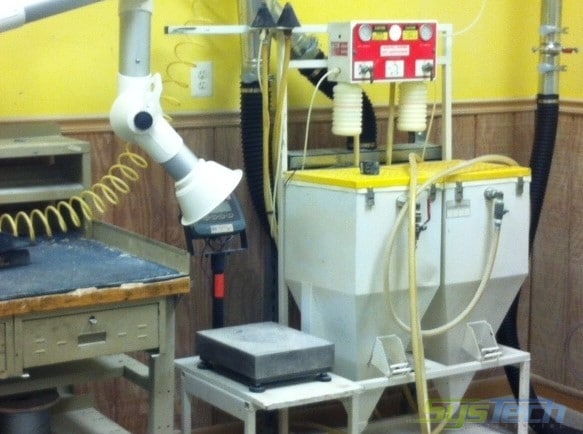

Plastic Hood on a Flexible Arm

Plastic Hood on a Flexible Arm
T
Plastic Hood on a Flexible Arm

Plastic Hood on a Flexible Arm

Plastic Hood on a Flexible Arm

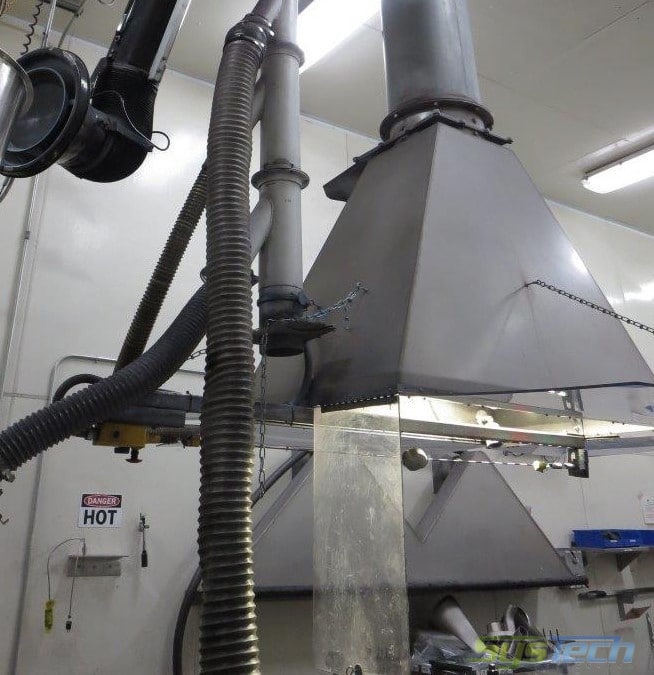

Fabricated Canopy Hood

Fabricated Canopy Hood
T
Fabricated Canopy Hood

Fabricated Canopy Hood

Fabricated Canopy Hood

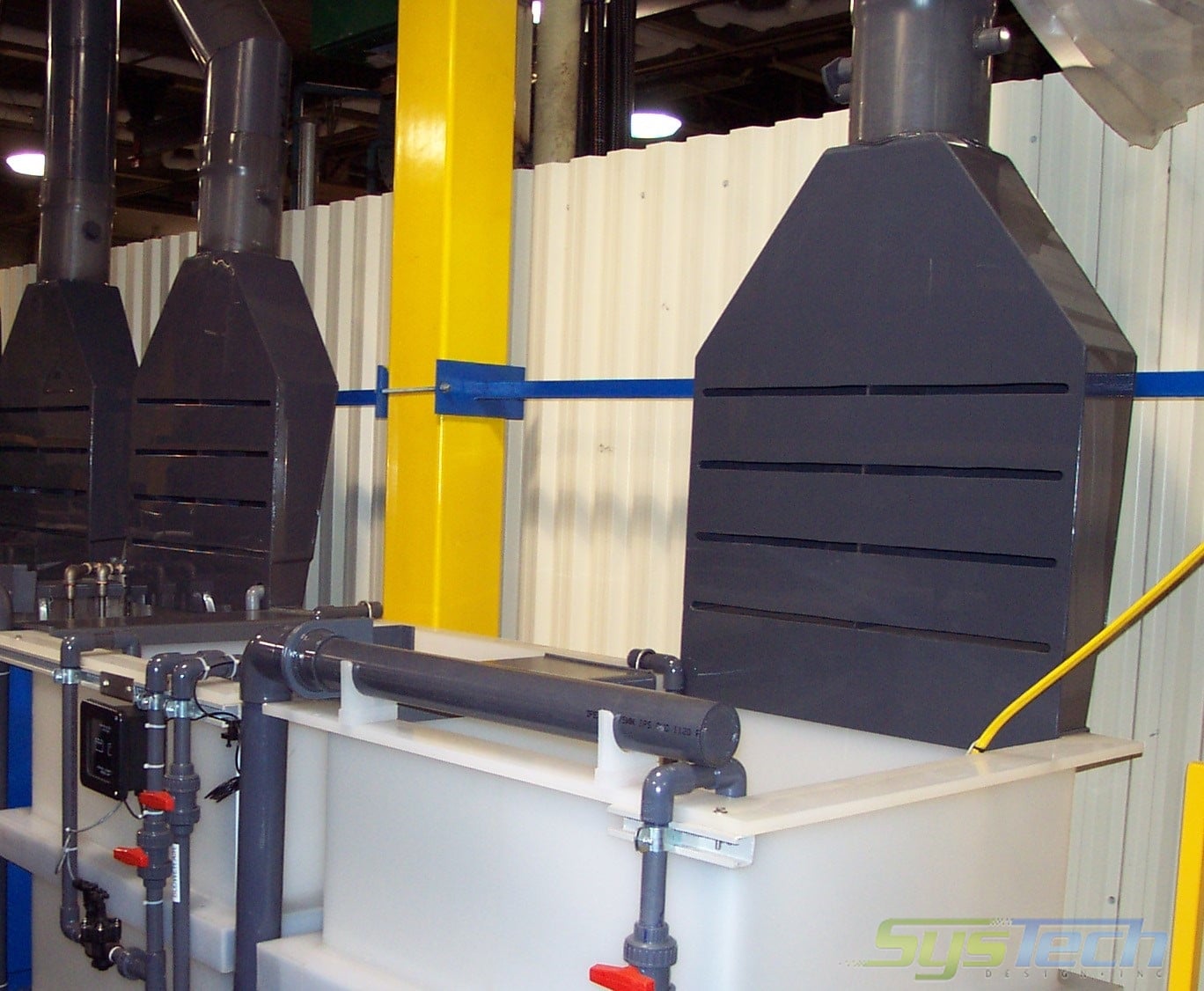

PVC Backdraft Slotted Tank Hood

PVC Backdraft Slotted Tank Hood
T
PVC Backdraft Slotted Tank Hood

PVC Backdraft Slotted Tank Hood

PVC Backdraft Slotted Tank Hood

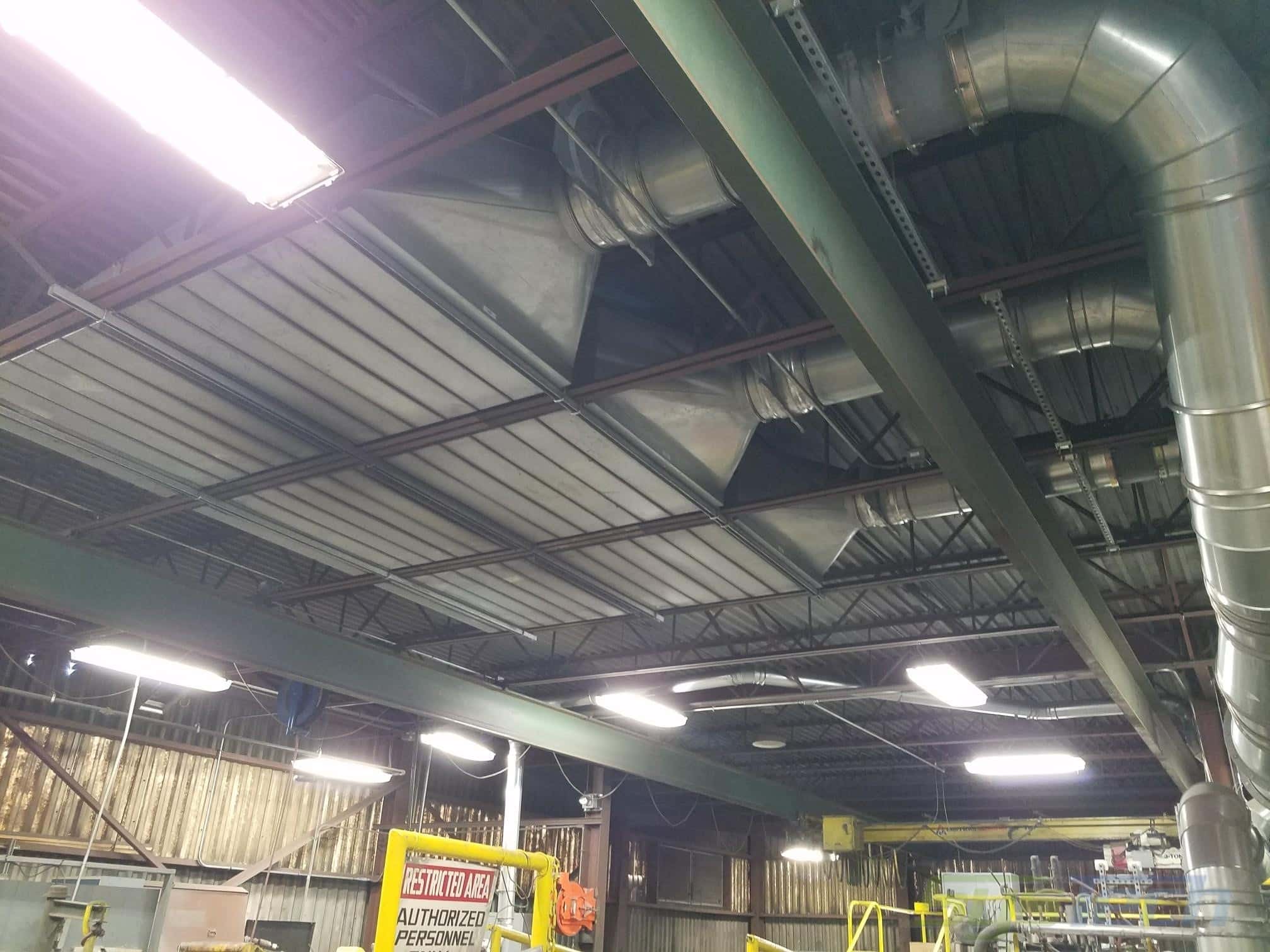

Overhead Mounted Custom Slotted Hoods

Overhead Mounted Custom Slotted Hoods
T
Overhead Mounted Custom Slotted Hoods

Overhead Mounted Custom Slotted Hoods

Overhead Mounted Custom Slotted Hoods

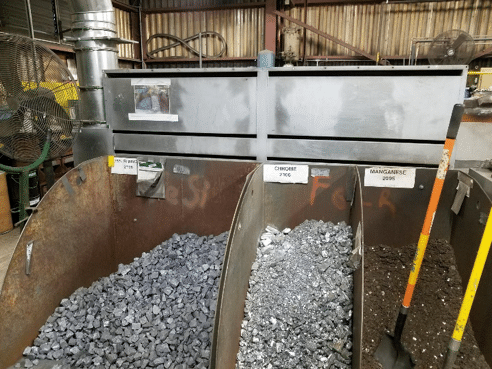

Slotted Backdraft Hood Design

Slotted Backdraft Hood Design
T
Slotted Backdraft Hood Design

Slotted Backdraft Hood Design

Slotted Backdraft Hood Design

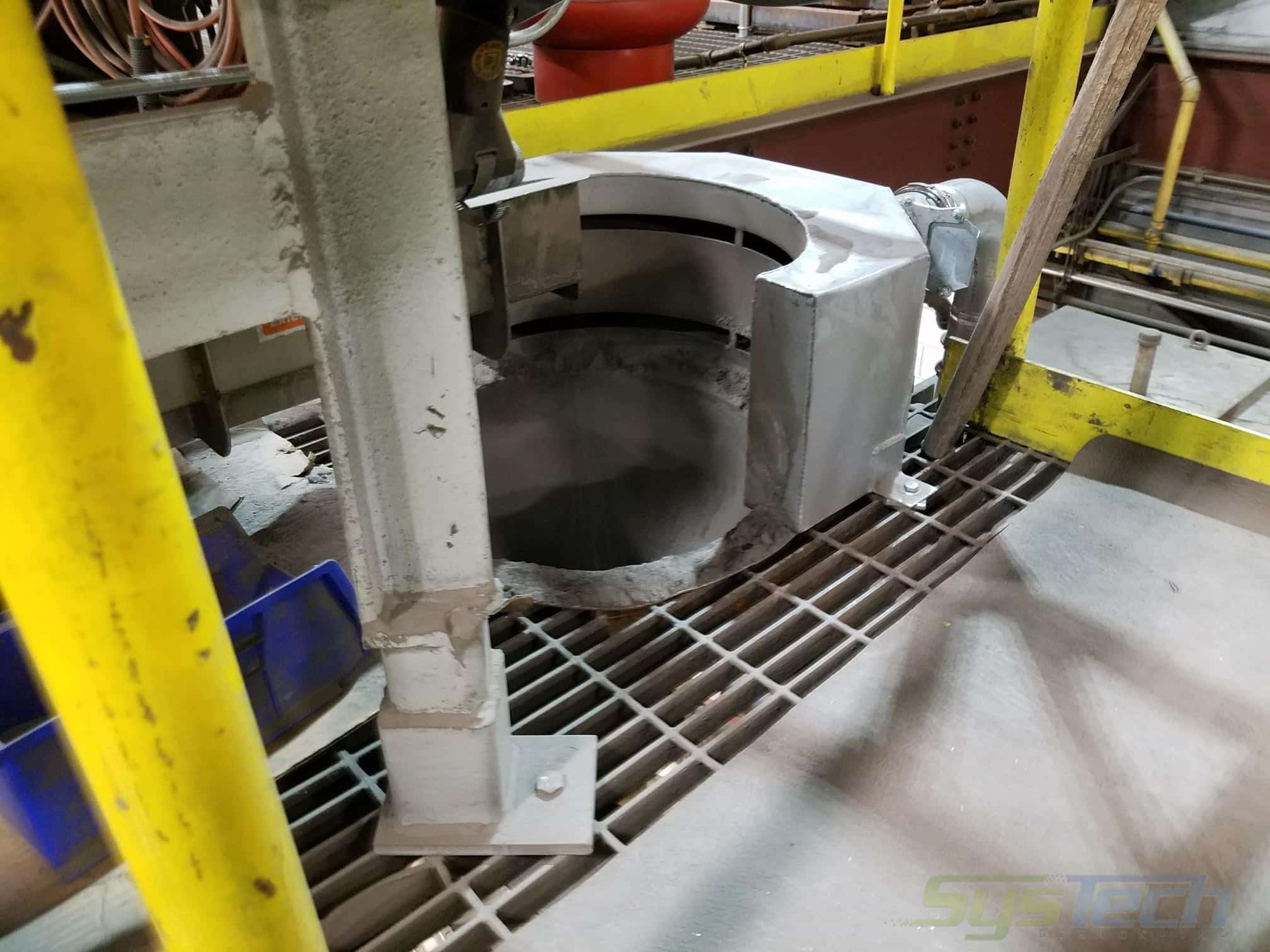

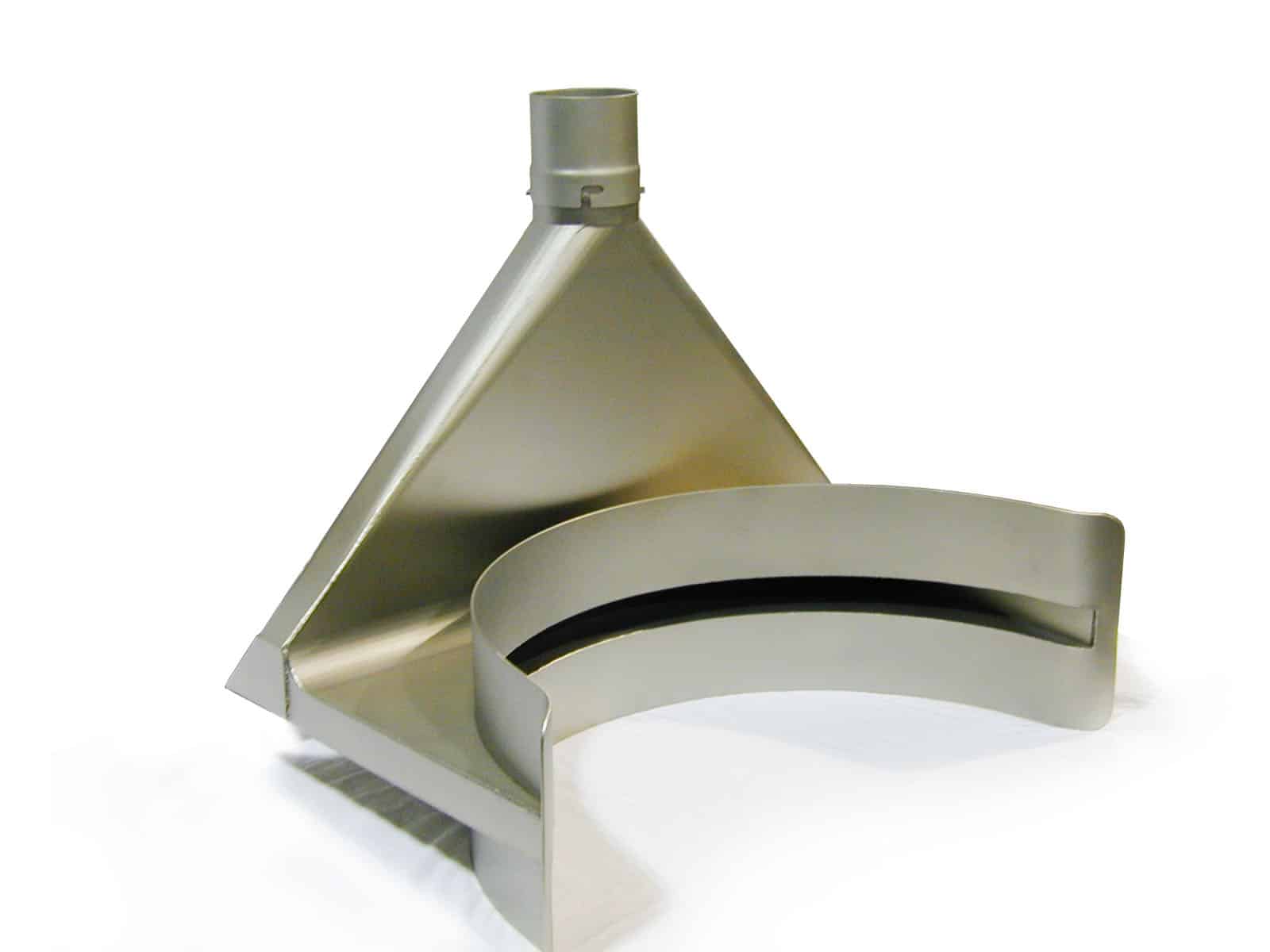

Barrel Wrap-Around Hood With Slot

Barrel Wrap-Around Hood With Slot
T
Barrel Wrap-Around Hood With Slot

Barrel Wrap-Around Hood With Slot

Barrel Wrap-Around Hood With Slot

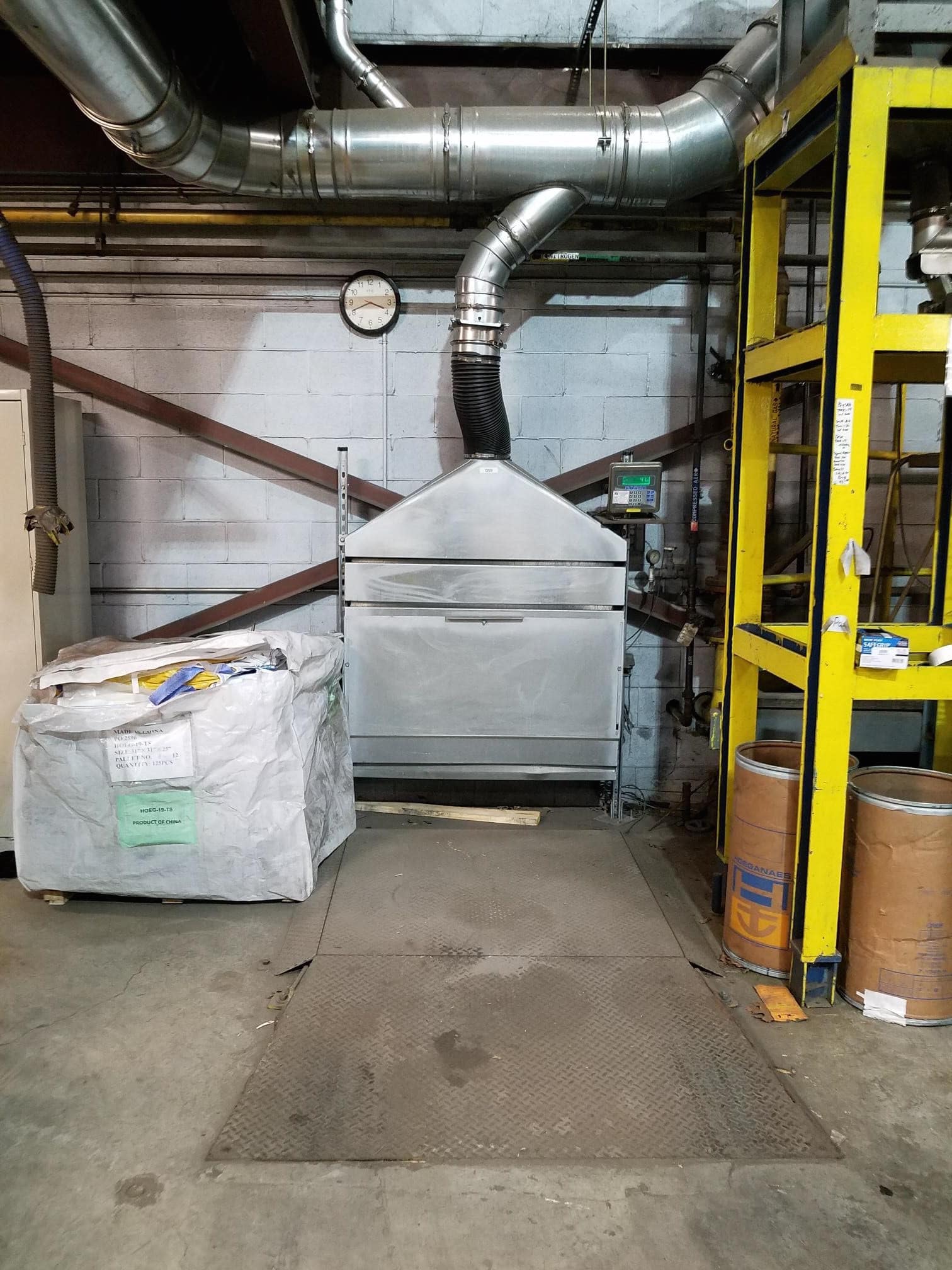

Slotted Backdraft Hood Design on Powder Mixing

Slotted Backdraft Hood Design on Powder Mixing
T
Slotted Backdraft Hood Design on Powder Mixing

Slotted Backdraft Hood Design on Powder Mixing

Slotted Backdraft Hood Design on Powder Mixing

Common Industrial Exhaust Hoods

Exhaust hoods provided by SysTech are custom designed to fit the application. The size of the workspace envelope, worker access requirements, capture velocity, and airstream materials help determine the design airflow. Design considerations include mounting configuration, side shields for cross drafts, materials of construction, internal baffles, open area, and capture velocity.

BACKDRAFT HOOD

Backdraft hoods allow for a uniform capture velocity over a wide area and are applied where overhead access to the work surface is not allowable. Backdraft designs are frequently used for exhausting fumes from open tanks and operations where canopy designs impede overhead functions such as cranes or lifting apparatus. The size of the hood (s) and number of slots is predicated on materials being captured, temperature, capture velocity, and height of work surface. Applications frequently require side shields to minimize cross-draft air movement. Frequent multi-slot applications include open surface tanks, weld stations, push-pull open tank exhaust, and foundry shakeout. Single slotted hoods, sometimes called slotted lip exhaust hoods, can be curved to fit up to a barrel or tub for barrel filling applications.

CANOPY HOOD

Canopy hoods are located above the work surface when overhead access is permitted and where large volumes of exhaust airflow are needed for rising smoke and fume extraction. Heated airstreams such as those found in melting processes carry the fume upward into the hood. Hood design options include insert baffles, a central interior air distribution plate, downdraft air curtains on the hood perimeter, or a skirt comprised of flexible curtain material. Where required, complete housing will be built around the process and hood to encapsulate smoke and fume. Application examples are most hot processes, large work areas, oven door exhaust, melting furnace door exhaust, dip tanks, and pouring stations.

CONICAL HOOD

Conical hoods are usually connected to ductwork or flex hose and are available in other rectangular shapes with an angular face or flange on the hood inlet to aid capture efficiency. These are used on flexible fume exhaust arms but can be applied to stationary applications. Materials of construction include carbon steel, aluminum, stainless steel, PVC, and FRP. They are frequently used for point source fume and dust capture extraction such as welding, grinding, barrel and bag filling, and for chemical fumes in laboratories.

BENCHTOP HOOD

These are small bench mounted or tabletop hoods with a filtration section added. They are applied as individual workstations where they are used to encapsulate smaller operations that generate hard to capture smoke and particulate. They can be connected directly to an external duct system, either from the assembly’s back, top or bottom. If needed, they can have an integrally mounted exhaust fan. The inlet shroud can be metal or “see-thru” materials like Lexan. Air filter The efficiency of the air filter is based on the material being captured. We see these in small assembly operations involving soldering, jewelry polishing and buffing, dental laboratories, and sample box work.

Advantages of Custom Exhaust Hoods

  • Can be adjustable or stationary, requiring a minimal amount of space
  • Often, they can be attached to a flexible extraction arm so they can be easily maneuvered out of the way
  • Custom designed to maximize collection efficiency at a point source
  • Fit to process equipment layout for dust and fume removal
  • Can be added to an existing central dust or fume collection system if the exhaust fan has the performance capacity
  • Isolate pollutant points throughout a plant
  • Construction options of carbon steel, stainless steel, FRP, or PVC

Avoid Poor Exhaust Hood Design

  • If the hood is not designed to be positioned close to the contaminant source or positioned in a correct manner it will not collect dust or fume effectively
  • If the capture velocity and hood size are not correctly designed, they will not be used
  • When the staff says a hood is “not working”, it will not be used
  • If the hood design is “in the way” it will not be used
  • Room cross drafts, caused by local cooling fans or window fans, may push air away from the hood inlet and negate the effectiveness of source capture

We are familiar with many source capture hood applications requiring atypical designs and the necessary design steps needed for the proper collection of smoke, dust, and fume. Call us and see how we can help.

×
