Industrial ventilation application for source capture of smoke and fumes from a small plasma cutting table. Air cleaning and filtration were accomplished with a Donaldson Torit Model DFE 2-4 dust collector that collected the smoke and fumes from the Prostar PRS-100 plasma table. The dust collector is capable (depending on the dust) of 4,000 CFM, while the table is rated for 1,800 CFM, allowing room for expansion.
.
Prostar PRS-100 Plasma Table with Industrial Ventilation
In addition to the dust collector, the exhaust/air filtration system includes quick clamp ductwork, zipper duct for the plasma table, side-mounted Cincinnati cast aluminum pressure blower (PB) exhaust fan, HEPA after filter, and a 10 HP Variable Frequency Drive (VFD) with airflow controller control panel.

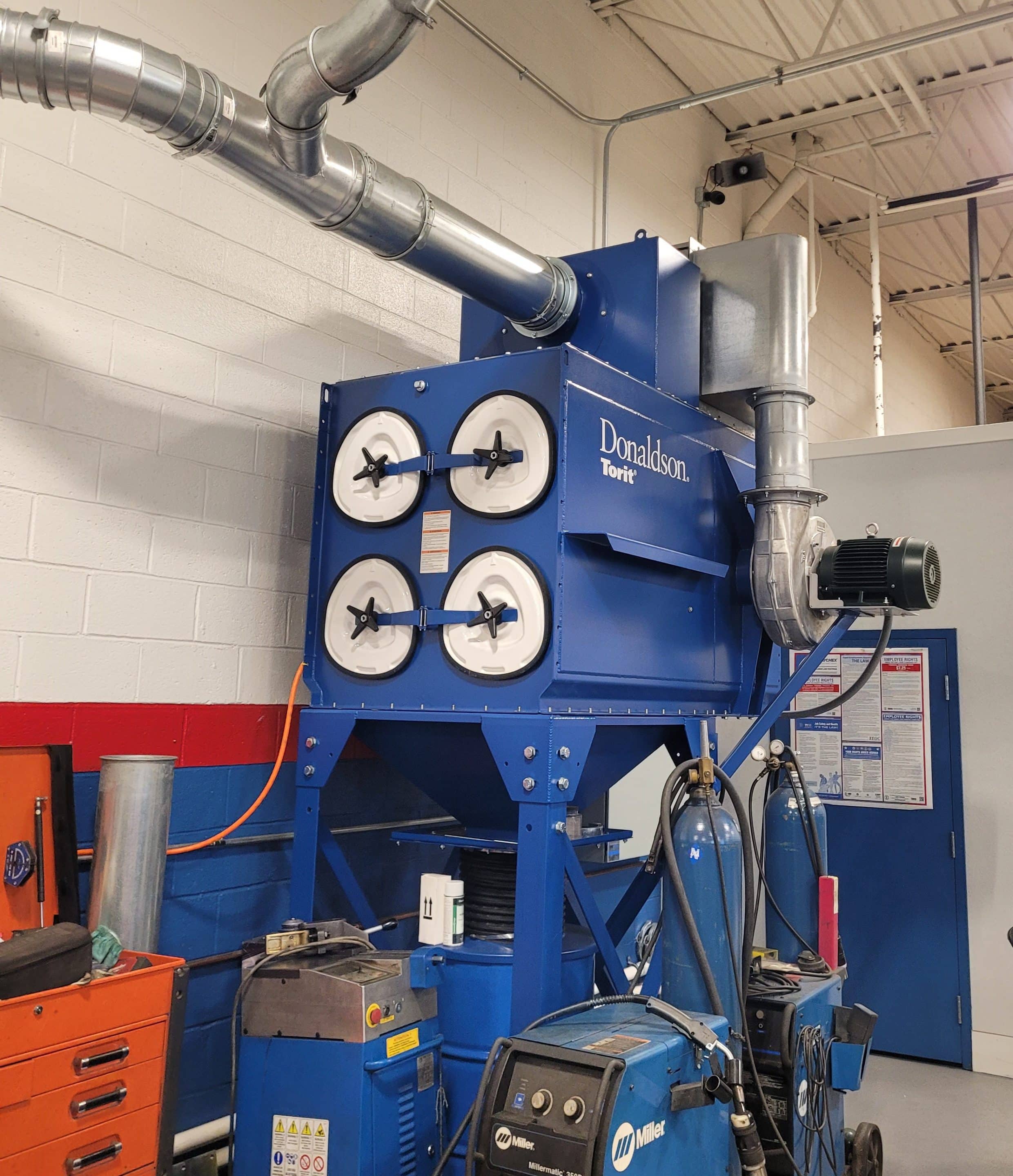

Donaldson Torit Model DFE 2-4 Dust Collector
